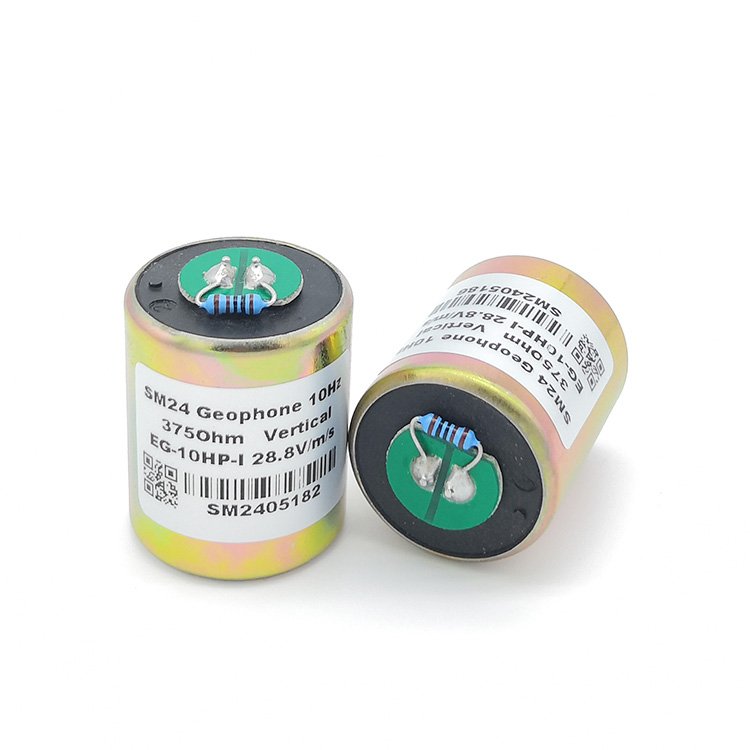

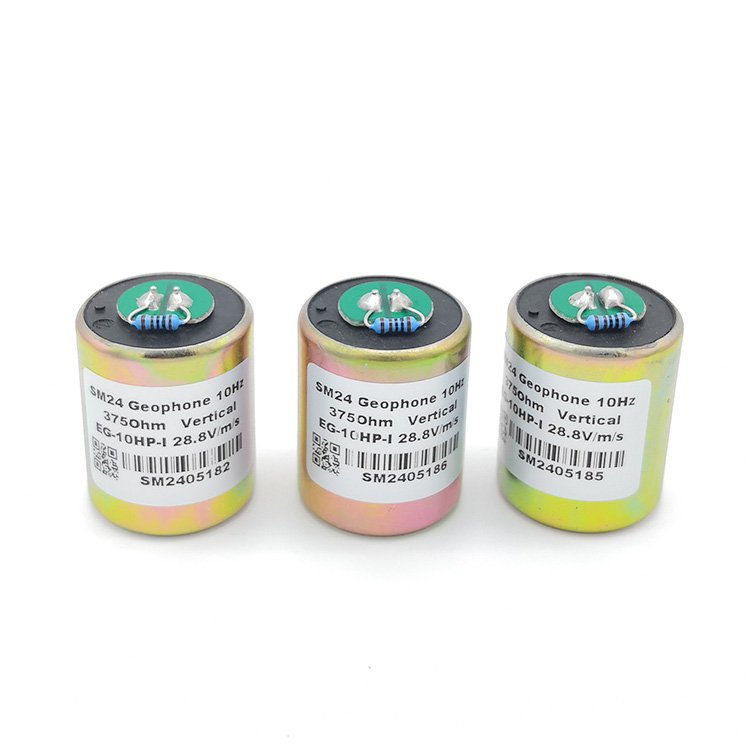

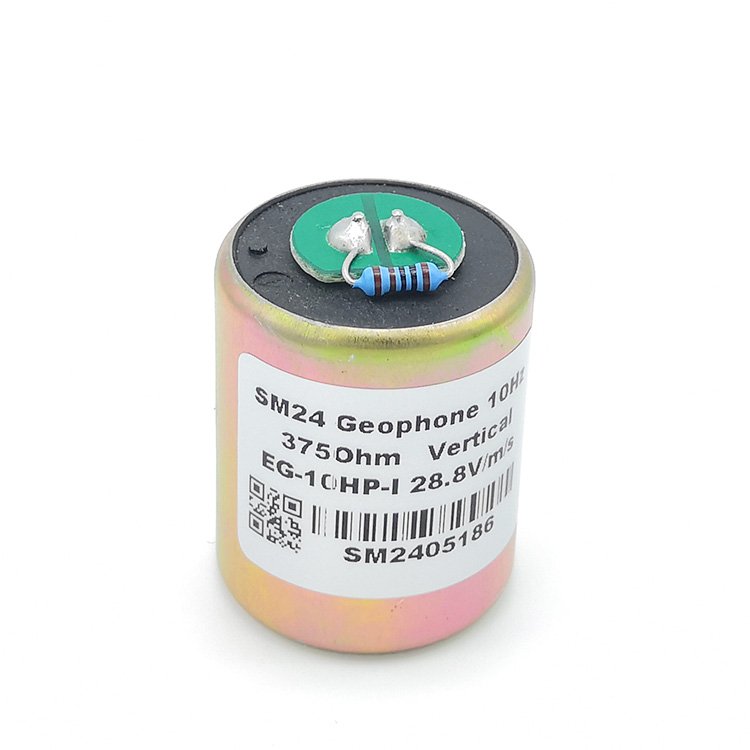

SM-24 Geophone 10Hz Sensor Vertical

Description

Advanced Design and Unmatched Precision

The EG-10HP-I Geophone 10Hz is a revolutionary product designed for high accuracy and precision in seismic exploration. With advanced engineering, this geophone serves as an excellent equivalent to the SM-24 geophone 10Hz sensor Vertical. Its standout features include a high false frequency, exceptional anti-interference capabilities, and next-level performance stability, making it an industry-leading geophysical sensor. Each parameter is finely tuned with a meticulous tolerance range within ±2.5%, guaranteeing reliable results in even the most demanding scenarios.

Exceptional Performance and Stability

When precision matters most, the EG-10HP-I Geophone delivers. Boasting a distortion factor of ≤0.1% and robust signal clarity, this geophone ensures rich, accurate data collection for seismic studies. Whether you are dealing with complex environments or seeking enhanced data reliability, this device offers unparalleled performance. Rigorous production processes and precision machining guarantee stable operation, giving users confidence in the geophone’s ability to withstand diverse and challenging operating conditions.

Perfect Tool for Seismic Exploration

Specially crafted for seismic professionals, the EG-10HP-I Geophone provides exceptional data quality tailored to suit exacting industry standards. Its high accuracy and precision make it ideal for accurate seismic exploration, ensuring dependable signal acquisition and minimal data distortion. Each component of the sensor is subjected to mature production techniques, highlighting its superior build quality and long-lasting performance. Harness the power of a geophone designed specifically to meet the modern demands of seismic professionals.



Type	EG-10HP-I (SM-24 equivalent)
Natural Frequency ( Hz )	10 ± 2.5%
Coil resistance(Ω)	375±2.5%
Opening Circuit Damping	0.25
Damping With Shunt Resistor	0.686 + 5.0%, -0%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s )	28.8 v/m/s ± 2.5%
Sensitivity With Shunt Resistor ( v/m/s )	20.9 v/m/s ± 2.5%
Damping Calibration-Shunt Resistance （Ω）	1000Ω
Harmonic distortion ( % )	＜0.1%
Typical Spurious Frequency (Hz )	≥240Hz
Moving Mass ( g )	11.0g
Typical case to coil motion p-p ( mm )	2.0mm
Allowable Tilt	≤10º
Height ( mm )	32
Diameter ( mm )	25.4
Weight ( g )	74
Operating Temperature Range ( ℃ )	-40℃ to +100℃
Warranty Period	3 years

All parameters specified here in are rated at a temperature 20℃±2℃ .
