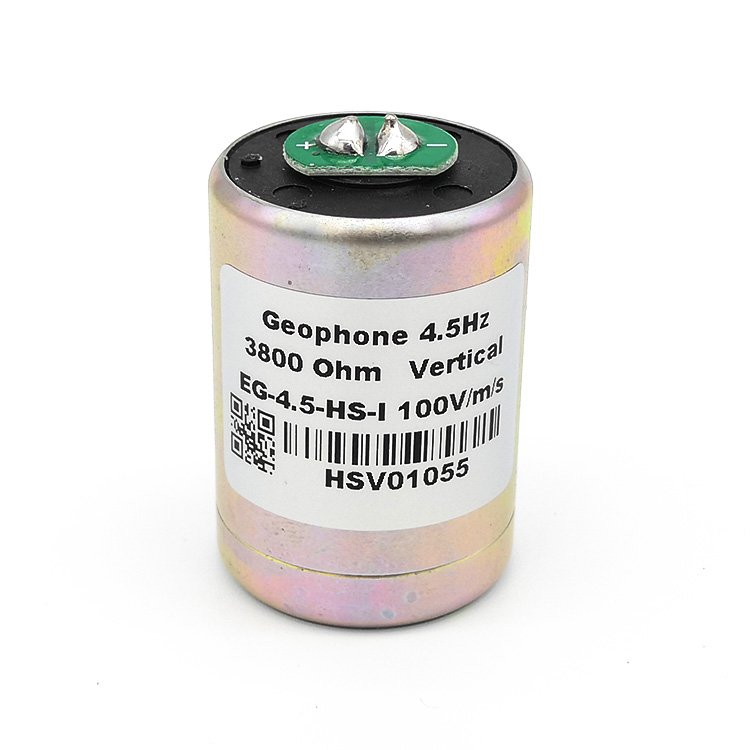

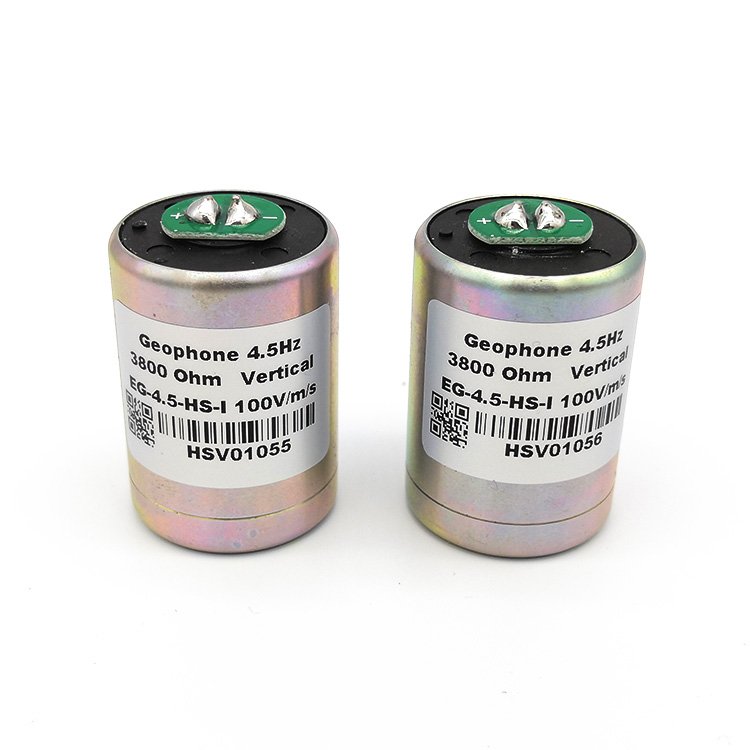

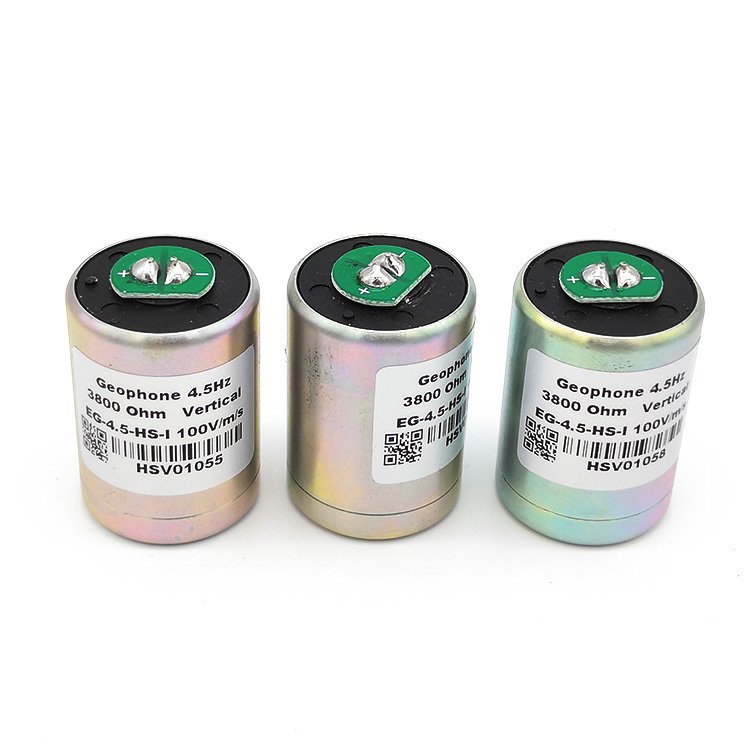

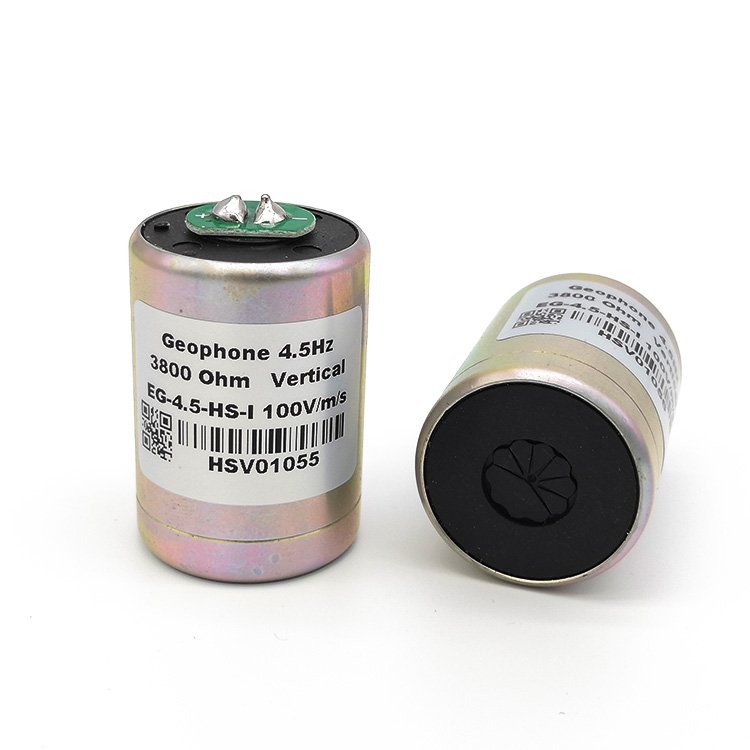

Professional EG-4.5-HS-I High Sensitivity Geophone 4.5Hz Vertical 100V/m/s
EG-4.5-HS-I High sensitivity geophone 4.5Hz is a specialized low frequency geophone sensor with open circuit sensitivity of 100V/m/s.
Description
Unlock Precision with the EG-4.5-HS-I High Sensitivity Geophone
Discover unparalleled performance with the EG-4.5-HS-I High Sensitivity Geophone 4.5Hz, expertly crafted to receive deep, low-frequency signals. Designed with advanced engineering, this geophone excels in delivering low distortion and exceptional sensitivity, making it an indispensable tool for field professionals seeking to capture singular-point data. Whether you’re working with single-point or three-component acquisition, this geophone ensures the highest level of precision for your specialized applications.
Optimized for Low Frequency and High Accuracy
Boasting a low-frequency design, the EG-4.5-HS-I Geophone 4.5Hz sets itself apart in identifying weak and deep signals. This geophone ensures that every detail is captured with minimal distortion—perfect for delicate, data-sensitive tasks. Its high-sensitivity technology guarantees superior responsiveness, elevating your data acquisition efforts to a more advanced standard. Industry experts can rely on this device for optimal performance, particularly in environments requiring precision field testing and in-depth seismic applications.
Versatile Applications for Diverse Data Acquisition Needs
The EG-4.5-HS-I Geophone 4.5 Hz prioritizes versatility in its design. It can be used either as a single-point unit or as part of a three-component setup, allowing for flexibility across various data acquisition scenarios. Field professionals working in dynamic environments will appreciate how seamlessly this geophone adapts to different use cases, ensuring reliability irrespective of external conditions. Its robust yet adaptable design makes it a perfect choice for both professionals and researchers alike.
With its commitment to performance and precision, the EG-4.5-HS-I High Sensitivity Geophone 4.5Hz is more than a product—it’s an essential tool for achieving data acquisition perfection. Whether for seismic data collection or field exploration, choose the EG-4.5-HS-I geophone 4.5 Hz and ensure your work reaches unrivaled accuracy and depth.
| Type | EG-4.5-HS-I |
|---|---|
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 3800 ± 5% |
| Opening Circuit Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 100 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.9% |
| Typical Spurious Frequency (Hz ) | ≥90Hz |
| Moving Mass ( g ) | 11.8g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 81g |
| Operating Temperature Range ( ℃ ) | -40℃ to +100℃ |
| Warranty Period | 1 years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
